This guide outlines the steps required to initialize the Sophos Central Beat using the Open Collector.

Prerequisites

The Open Collector is installed. If you have not already installed it, follow the instructions in the (2026.02) Open Collector Installation and User Guide, and then return to this topic.
The ClientID and ClientSecret keys obtained from the Sophos web console during the steps outlined in (2026.02) Configure Sophos Central.

The following port is open:

Direction	Port	Protocol	Source
Outbound	443	HTTPS	sophoscentralbeat

The steps outlined in this guide describe the Sophos Central Beat setup process using a Client ID and Client Secret, which are needed to configure Sophos Central Beats for version 7.0.0 and later. If you are currently using Sophos Central Beat version 6.0.3 or earlier, upgrade to Sophos Central Beat version 7.0.0 (or later), along with LRCTL version 6.6.0 (or later).

When upgrading to Sophos Central Beat version 7.0.0 or later, ensure all existing instances are closed before launching a new one. Note that versions 7.0.0 and above are not backward compatible with the 6.x.x series.

Similarly, these steps were updated for LogRhythm SIEM version 7.21. Creating a Sophos Beat instance in the Web Console on a version prior to 7.21 will cause the beat to function incorrectly.

Initialize the Beat

To confirm the Open Collector is running, run the following command:
```
./lrctl status
```
You should see the open_collector and metrics as shown in the following graphic:

If the Open Collector is not running correctly, see
Troubleshoot the Open Collector
in the Open Collector Installation and User Guide.
In the Open Collector, run the following command:
```
./lrctl sophoscentralbeat start
```
Select New sophoscentralbeat instance and provide a unique name.
Enter the following details:

The ClientID and ClientSecret configuration fields are saved in encrypted format.

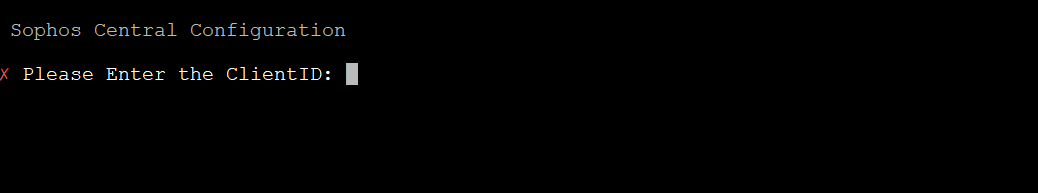

1. Enter the ClientID for the Sophos Central beat.

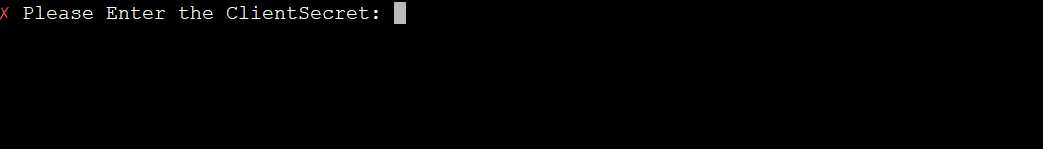

2. Then enter the ClientSecret for the Sophos Central beat.
Save the configuration.
The Sophos Central Beat service starts successfully.

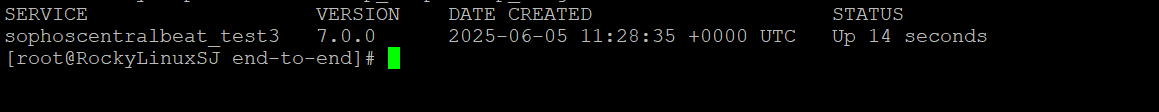

To check the status of the service, run the following command:
```
./lrctl sophoscentralbeat status
```

Default Config Values for Sophos Central Beat

S. No.	Field Name	Default Value
1.	period	7s
2.	HeartbeatInterval	1m0s
3.	HeartbeatDisabled	false
4.	ClientID	User Provided
5.	ClientSecret	User Provided
