Initialize the Cisco AMP Beat | LogRhythm Documentation

As of the November 2020 release (OC2020.11), we are supporting log collection for Cisco AMP audit logs. To start collecting Cisco AMP audit logs, update your existing beat. You do not need to provide any extra inputs.

Prerequisites

The Open Collector is installed. If you have not already installed it, follow the instructions in the Open Collector Installation and User Guide, and then return to this topic.
You have the required keys: Cisco Client ID and API Key.

The following port is open:

Direction	Port	Protocol	Source
Outbound	443	HTTPS	ciscoampbeat

Initialize the Beat

Confirm the Open Collector is running:
```
./lrctl status
```
You should see the open_collector and metrics as shown in the following graphic:

If the Open Collector is not running correctly, see the
Troubleshoot the Open Collector
topic in the Open Collector Installation and User Guide.

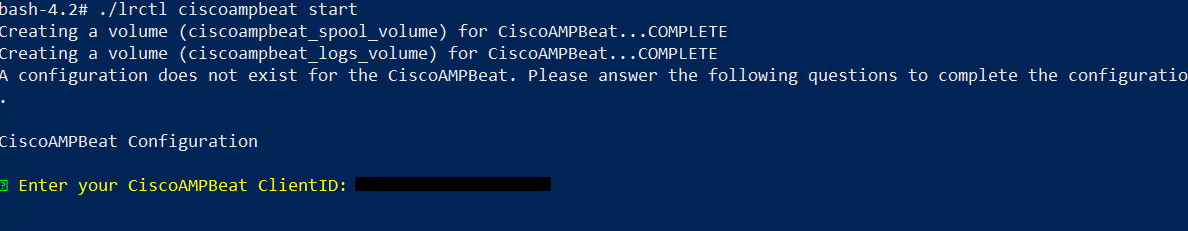

Start the beat:
```
./lrctl ciscoampbeat start
```
Enter the following details:

The Cisco AMP Client ID and API key are saved in encrypted format.
1. Cisco AMP Client ID:
2. Cisco AMP API Key:
3. URL Address for preferred region:

  It’s important to note that the API is location-based and varies depending on where your AMP instance resides.

  Currently, three regions exist:
  - U.S.: api.amp.cisco.com
  - Asia, Pacific, Japan & China: api.apjc.amp.cisco.com
  - Europe: api.eu.amp.cisco.com
4. Event types:

  The default value of Event Types is ALL.

  User can provide multiple Event Type IDs with comma:

  For more information on specific Event type IDs, see https://api-docs.amp.cisco.com/api_actions/details?api_action=GET+%2Fv0%2Fevent_types&api_host=api.amp.cisco.com&api_resource=Event+Type&api_version=v0.
The configuration has been saved and the service has been started successfully.
Check the status of the service:
```
./lrctl ciscoampbeat status
```

Default Config Values for CiscoAMPBeat:

S. No.	Field Name	Default Value
1.	HeartbeatInterval	60s
2.	HeartbeatDisabled	false
3.	Period	4s
4.	apiKey	User provides this value.
5.	clientID	User provides this value.
6.	eventTypes	User provides this value. (Default: All)
7.	limit	250
8.	numbackdaysDataAuditLogs	7
9.	numbackdaysData	7
10.	uriAddress	User provides this value.
11.	version	v1
12.	throttlingIntervalSecs	60 seconds

To avoid throttling issues (429 error for too many requests), do not set the Period parameter below 4 seconds.
