Connect Network Interface Cables
The LR-NM3600 appliance and the LR-NM5600 appliance have multiple network interfaces of different speeds and types which you can use for various functions. It is recommended to configure your appliances with at least one Management Interface, one Recovery Interface, and one Capture Interface. Up to eight Capture Interfaces are supported.
As an option, you can insert an SSL Decrypter between the NetMon appliance and the network.

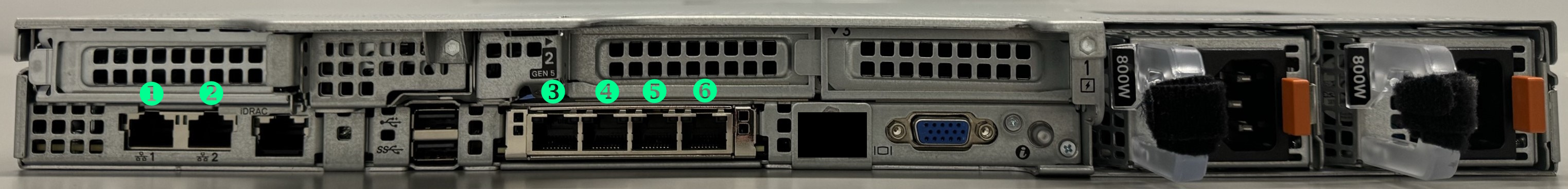

NM3600
Image # (above) | Interface Name | Interface Type | Controller | Interface Speed | Recommended Use |
|---|---|---|---|---|---|
1 | eno8303 | Ethernet | Broadcom LOM | 1Gb/s | Management/Recovery |
2 | eno8304 | Ethernet | Broadcom LOM | 1Gb/s | Management/Recovery |
3 | eno12399 | Ethernet | Intel X710 OCP | 1/2.5/5/10Gb/s | Capture/Management |
4 | eno12409 | Ethernet | Intel X710 OCP | 1/2.5/5/10Gb/s | Capture |
5 | eno12419 | Ethernet | Intel X710 OCP | 1/2.5/5/10Gb/s | Capture |
6 | eno12429 | Ethernet | Intel X710 OCP | 1/2.5/5/10Gb/s | Capture |

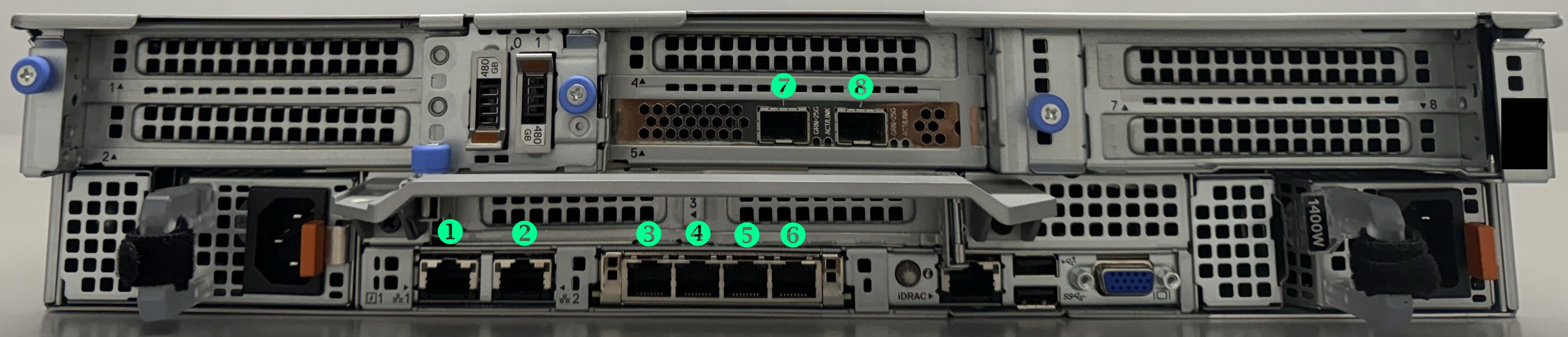

NM5600
Image # (above) | Interface Name | Interface Type | Controller | Interface Speed | Recommended Use |
|---|---|---|---|---|---|
1 | eno8303 | Ethernet | Broadcom LOM | 1Gb/s | Management/Recovery |
2 | eno8304 | Ethernet | Broadcom LOM | 1Gb/s | Management/Recovery |
3 | eno12399 | Ethernet | Intel X710 OCP | 1/2.5/5/10Gb/s | Capture/Management |
4 | eno12409 | Ethernet | Intel X710 OCP | 1/2.5/5/10Gb/s | Capture |
5 | eno12419 | Ethernet | Intel X710 OCP | 1/2.5/5/10Gb/s | Capture |
6 | eno12429 | Ethernet | Intel X710 OCP | 1/2.5/5/10Gb/s | Capture |
7 | ens5f0 | SFP28/Fiber | Intel E810 PCI-E | 10/25Gb/s | Capture |
8 | ens5f1 | SFP28/Fiber | Intel E810 PCI-E | 10/25Gb/s | Capture |
