Initialize the Qualys FIM Beat | LogRhythm Documentation

Prerequisites

The Open Collector is installed. If you have not already installed it, follow the instructions in the Open Collector Installation and User Guide, and then return to this topic.
An API Token is generated to provide the configuration keys.
The required keys API base URL, Username, and Password should be passed while configuring the Qualys FIM Beat.

The following port is open:

Direction	Port	Protocol	Source
Outbound	443	HTTPS	qualysfimbeat

Initialize the Beat via the Web Console (Recommended)

Ensure that the Open Collector Connection to the SIEM (WebUI) setup has been completed.
Ensure that the System Monitor Agent to which you intend to send these logs has been Configured for JSON Parsing.

Use either the Enable JSON Parsing on System Monitor Agents or the Enable JSON Parsing for an Existing System Monitor Agent sections at the above link to configure the System Monitor Agent for JSON Parsing.

Follow the steps outlined in Add a Beat in the Web Console to create the Beat via the Web UI.

Initialize the Beat via Command Line (Legacy)

In the Open Collector, run the following command to start the beat:
```

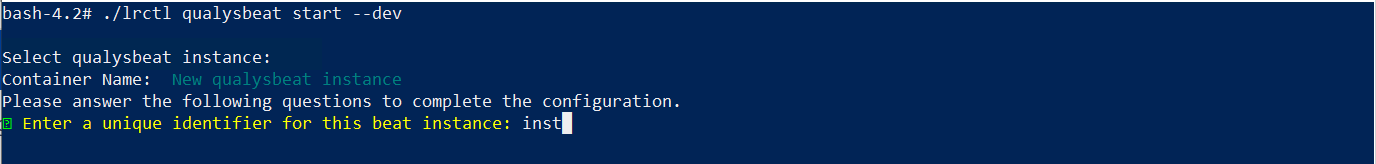

./lrctl qualysfimbeat start
```
Use the Up and Down Arrow keys to select New qualysfimbeat instance from the list, and then press Enter.
Enter the unique identifier for this qualysfimbeat instance, and then press Enter.
Enter the Qualys API base URL, and then press Enter.

For more information on the API base URL, see Identify your Qualys Platform.

The Qualys login link must be mapped with the API base URL. This will be used to make API calls to the Qualys FIM.

For example, in the Identify your Qualys Platform topic, if the Platform URL under Your Platform is "https://qualysguard.qg2.apps.qualys.com", the Platform will be US2. The API base URL for the Qualys FIM beat will be the API Gateway URL mentioned under API URLs against the Platform. Therefore, the API base URL in this case will be "https://gateway.qg2.apps.qualys.com".

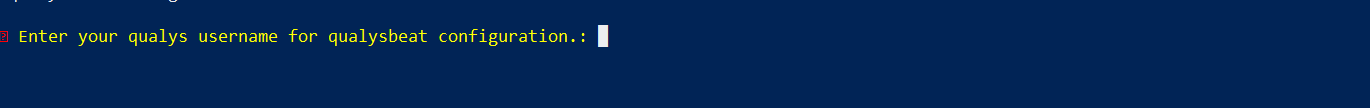

Enter the Qualys username, and then press Enter.

This is the login username used to access the Qualys Portal.
Enter the Qualys password, and then press Enter.

This is the login password used to access the Qualys Portal.
Enter the hostname or IP address of the System Monitor Agent that has been Configured for JSON Parsing, and then press Enter.

Enter the port on which the System Monitor Agent is configured to listen for JSON data (the default is 5044), and then press Enter.
The qualysfimbeat service started message appears.
Check the status of the service to confirm that it’s running:
```
./lrctl qualysfimbeat status
```
(Optional) Edit the qualysfimbeat configuration to update the values set above if needed. Ensure that you have all the needed information for each step available as you will need to re-enter it:
```
./lrctl qualysfimbeat config edit
```

Default Config Values for Qualys FIM Beat

S. No.	Field Name	Default Value
1.	period	120s
2.	HeartbeatInterval	1m0s
3.	HeartbeatDisabled	false
4.	username	User Provided
5.	password	User Provided
6.	url	User Provided
7.	numberofbackdays	7

Troubleshooting tips

If you experience data loss while the beat is running, increase the period value in the configuration file. By default, the beat is configured to poll 2000 logs/request during a period of 120 seconds. The number of logs to pull during the period can also be increased in the configuration file.
