Initialize the Okta Beat

This section provides instructions to initialize the Okta beat after configuration. It is primarily focused on the system log to be pulled out from Okta cloud.

Prerequisites

• Open Collector is installed. If you have not already installed it, follow the instructions in the Open Collector Installation and User Guide, and then return to this topic.
• Okta Cloud domain name. You can get this from the Okta Developer Console. Follow the instructions here https://developer.okta.com/docs/guides/find-your-domain/findorg/ for more information.
• Okta Cloud API Token. If you don't have one, follow the instructions here https://developer.okta.com/docs/guides/create-an-api-token/create-the-token/, and then return to this topic.

• The following port is open:

  Direction	Port	Protocol	Source
  Outbound	443	HTTPS	oktabeat

Initialize the Beat

1. Confirm Open Collector is running:

   CODE

   ./lrctl status

   You should see the open_collector and metrics versions:






   If Open Collector is not running correctly, see Troubleshoot the Open Collector in the Open Collector Installation and User Guide.

2. Start the beat:

   CODE

   ./lrctl oktabeat start

3. Enter the following details:

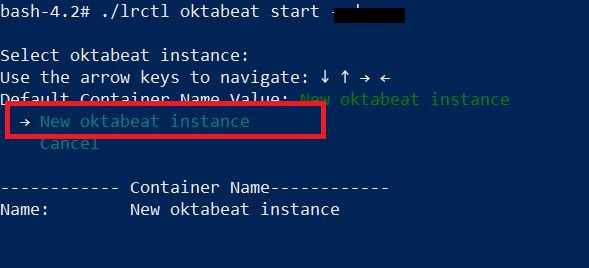

   1. Select New oktabeat instance from the list.

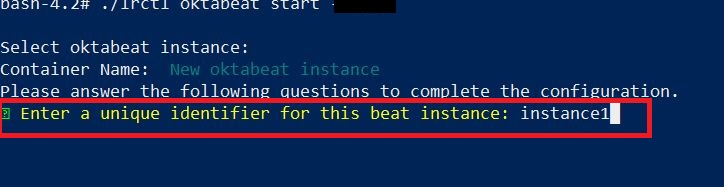

   2. Enter the unique identifier for this oktabeat instance.

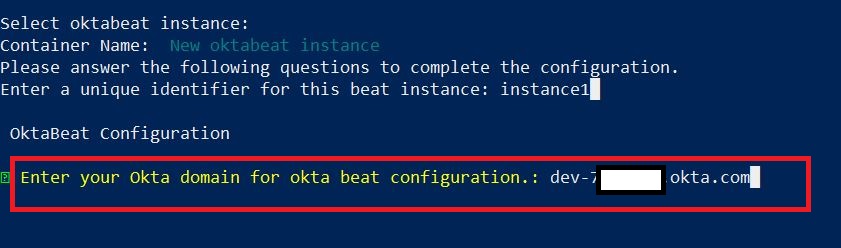

   3. Enter the Okta Domain to configure the oktabeat.



      Please follow https://developer.okta.com/docs/guides/find-your-domain/findorg/ for more information.

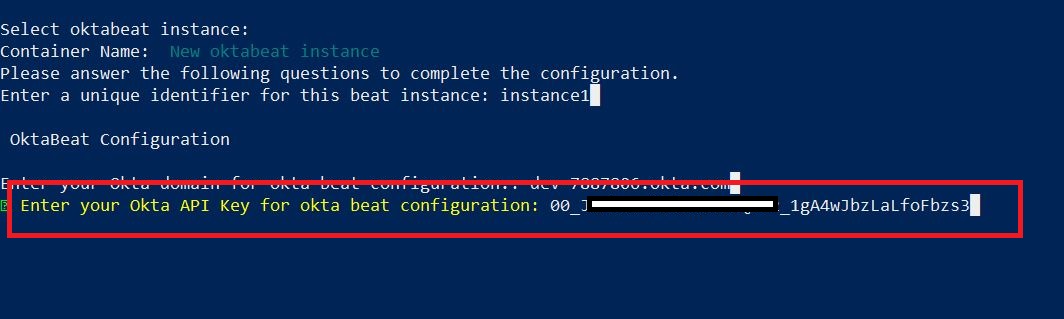

   4. Enter the Okta API Key.



      If you don't have one then, follow the instructions here https://developer.okta.com/docs/guides/create-an-api-token/create-the-token/ , and then return to this topic.





      For security purposes the API Key is stored in encrypted format.

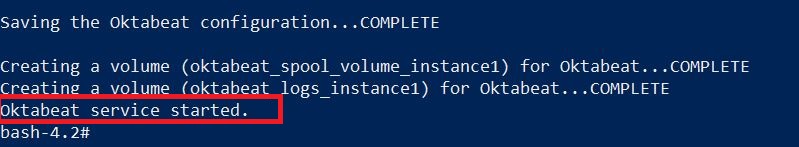

   The oktabeat service started message appears.

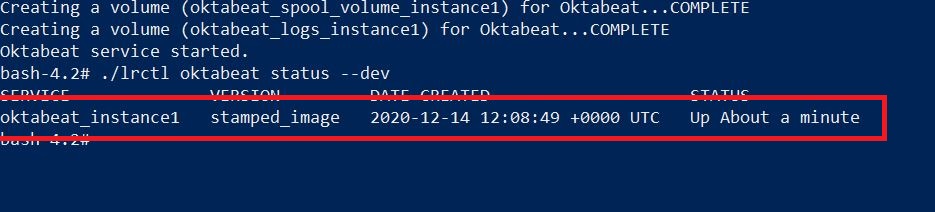

4. Check the status of the service:

   CODE

   ./lrctl oktabeat status



Default Config Values for oktabeat:

S.No	Field Name	Default Values
1.	heartbeatinterval	60s
2.	heartbeatdisabled	false
3.	period	2s
4.	throttlingIntervalSecs:	60 Should always be greater than 0
5.	numbackdaysData	7 Number of back days should be a non-negative number. oktabeat supports only 180 days back log data. Therefore the range for this value is 1-180 days.
6.	apiKey	User Provided API token provided by the user
7.	oktaURL	User Provided Okta cloud domain provided by the user
8.	limit	1000 Supported limit range is 1-1000

For commands to inspect or edit a configuration, see the configuration information in Open Collector Installation Tips.
