Work With Network Visualization Diagrams

Create a new Investigation with Platform Manager or Data Processor as the search type.
When the results appear, click the Network Visualization tab.
Do any of the following:
- From the network visualization diagram

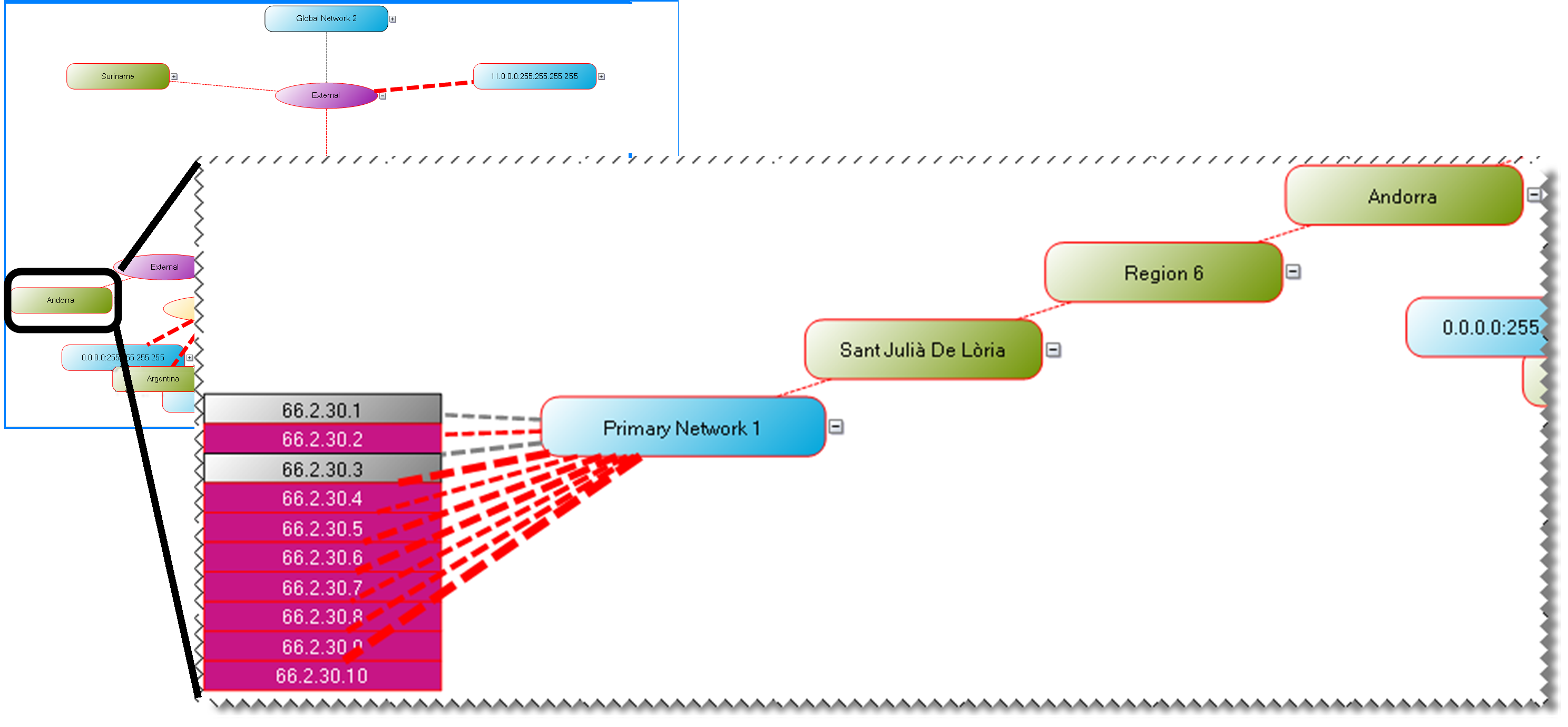

  - Click the + next to nodes to expand them.
  - Point to a node to see a screen tip with additional information.
  - Click a Host to show connections to other Hosts and display detailed information in the left pane.
    - Arrows at the end of the lines indicate direction.
    - If a host is both the origin and destination, the line loops back to itself.
    - Red lines indicate the log failure count is greater than 0.
    - Briefly pause on a link to display a screen tip with statistics about the link.
    - Press Ctrl and click a link to display its statistics in the left pane.
  - Double-click a node to drill down and show logs where the node is either the origin or impacted host.
  - Click a node to view its statistics in the left pane.

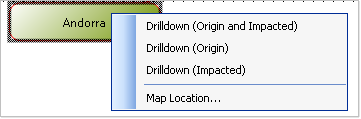

  - Right-click a selected node to display a context menu with the following options:
    - Drilldown (Origin and Impacted). Show logs that have the selected node is the origin or the impacted Host.
    - Drilldown (Origin). Show logs that have the selected node as the origin Host.
    - Drilldown (Impacted). Show logs that have the selected node as the impacted Host.

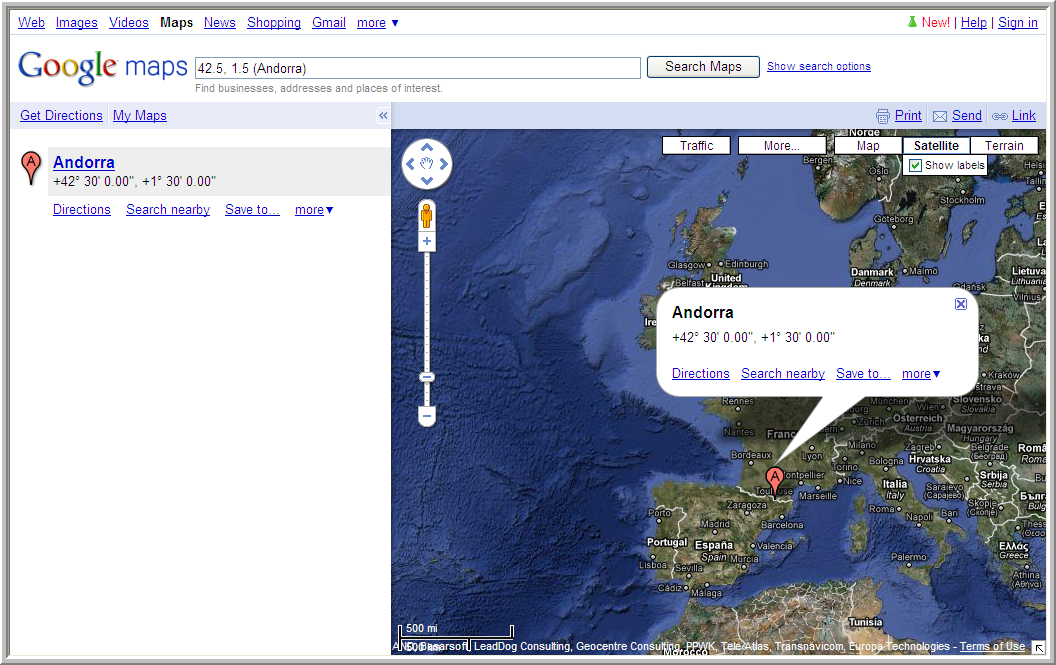

    - Map Location. If location information is available and you have access to a browser, select this option to display a map of a node location.

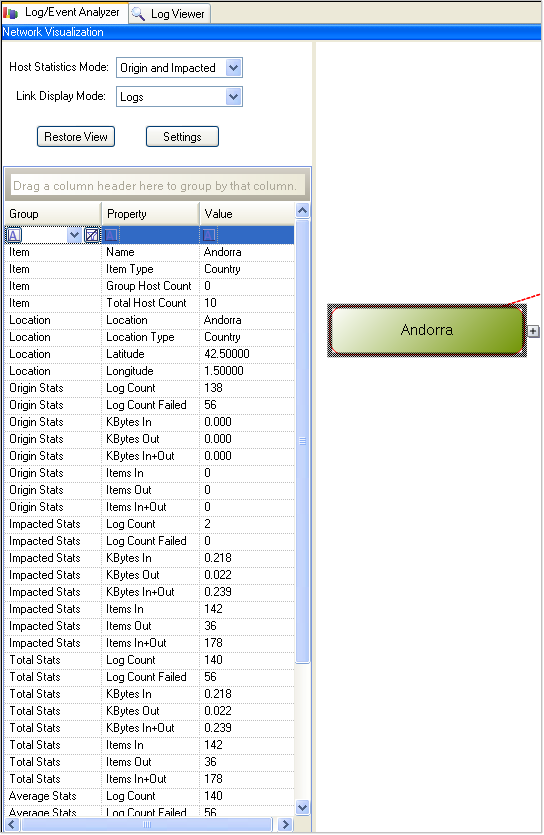

- From the left pane of the network visualization tab
  - From the top of the left pane
    - Select a Host Statistics Mode. Set the diagram links and link display mode here. The options are:
      - Origin and Impacted (default)
      - Origin
      - Impacted
    - Link Display Mode. Set the diagram links and host statistics mode here. The options are:
      - Logs
      - Bytes In, or Bytes Out, or Bytes In +Out
      - Items In, or Items Out, or Items In + Out
    - Click Restore View to return the diagram to the default view.
    - Click Settings to display a window where you can:
    - Select which Group Levels to display.
    - Select Expand Levels and Zoom to fit in the default view. This setting only affects the default display. You can still expand/contract nodes and modify the zoom in the diagram.
  - From the middle of the left pane
    - Click a node to select it.
    - Click the root node to view statistics for the entire diagram.
    - Click the parent node to view statistics for all related child nodes.
  - From the bottom of the left pane
    - Slide the zoom control to increase or decrease the size of the diagram.
    - Move the rectangle around the thumbnail diagram to select the viewing area.
    - Click Fit to set the zoom and viewing area to display the entire diagram in one action.
