Network Communications

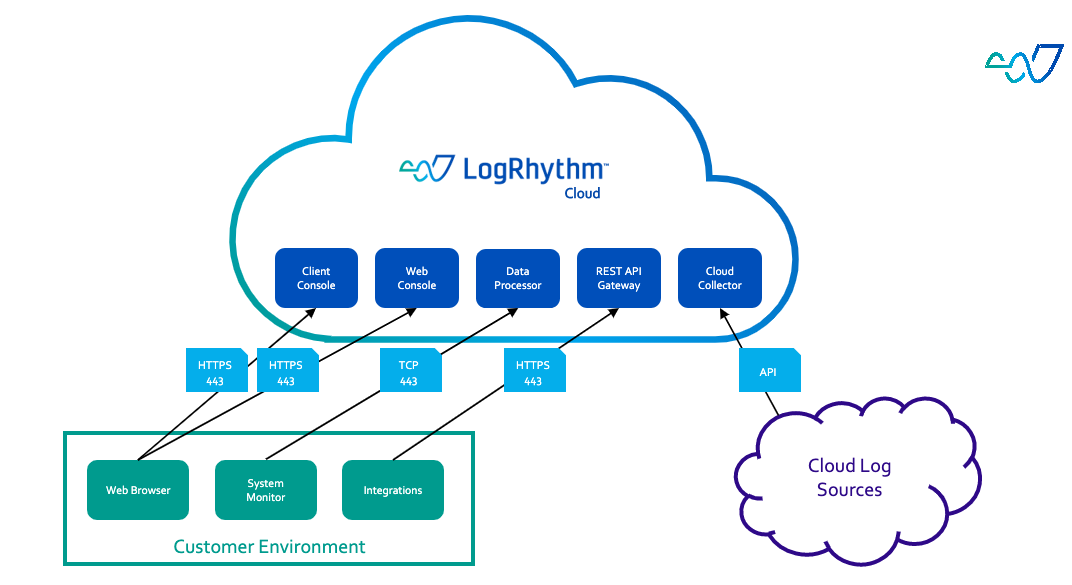

The network communications and interactions between the customer and LogRhythm Cloud environments are depicted in this section.
Component Interaction
Client | Client Port | Server | Server DNS Address | Server Port | Protocol | Communications |
|---|---|---|---|---|---|---|
Integrations | Random | API Gateway | [OrgName]-api.logrhythm.cloud* | 443 | HTTPS | Bidirectional, Client Initiated |
System Monitor | Random | Data Processor | [OrgName]-dp.logrhythm.cloud* | 443 | TCP/TLS | Bidirectional, Client Initiated |
Web Browser | Random | LogRhythm Client Console | 443 | HTTPS | Bidirectional, Client Initiated | |
Web Browser | Random | LogRhythm Web Console | https://[OrgName].logrhythm.cloud* | 443 | HTTPS | Bidirectional, Client Initiated |
*Specific Domain Name System (DNS) names are provided in the reference sheet.
