PubSub Beat Collection

This document explains how to initialize the PubSub Beat using cloud-to-cloud collection. This feature is available only to LRCloud customers.

Prerequisites

Before initializing the PubSub Beat collection from O365, do the following:

  • Make sure that the customer is an LRCloud customer and has their environment hosted.
  • Check if the Open Collector has been installed in the customer's LRCloud environment on a separate instance. If not, an Open Collector instance must be requested via a support case.
  • Ensure that the Open Collector log source has been accepted and configured for log source virtualization.
  • To collect logs from any GCP service, enable the required services in the GCP portal and make sure that there is a topic and one subscription created to receive the logs.

Apply the Log Source Virtualization Template

  1. Log in to the Client Console in Cameyo.
  2. Click Deployment Manager from the toolbar.
  3. Click the Log Sources tab.
  4. Double-click the required Open Collector Log Source (such as, {instance}-opencollector.c.e3-hub-753dd405.internal Open Collector).
    The Log Message Source Properties window appears.
  5. Click the Log Source Virtualization tab.
  6. If not checked, select the Enable Virtualization check box.
  7. Click Create Virtual Log Sources.
    The Create Virtual Log Sources dialog box appears.
  8. In the Virtual Log Sources menu, check the Action check box corresponding to "Syslog - Open Collector - GCP Pub Sub" and "Syslog - Open Collector - PubSubBeat Heartbeat" log source types.
  9. Click  Save.
    The Virtual Log Source(s) created prompt appears.
  10. Click Ok.
  11. Click Apply.
  12. Click Ok.
    The new Log Sources will appear in the grid as children of your parent log source.
  13. Click the System Monitors tab.
  14. Select the Action check box corresponding to the (customerid)-dpawc agent.
  15. Right-click the selection, click Actions and then click Service Restart

Initialize the Beat

  1. Log in to the Web Console as a Restricted Administrator User.
  2. On the top navigation bar, click the Administration icon
     and select Cloud Log Collection.
  3. At the top of the Cloud Log Collection page, click New Log Source.
    The New cloud log collection dialog box appears.
  4. Select the PubSub - Open Collector tile.

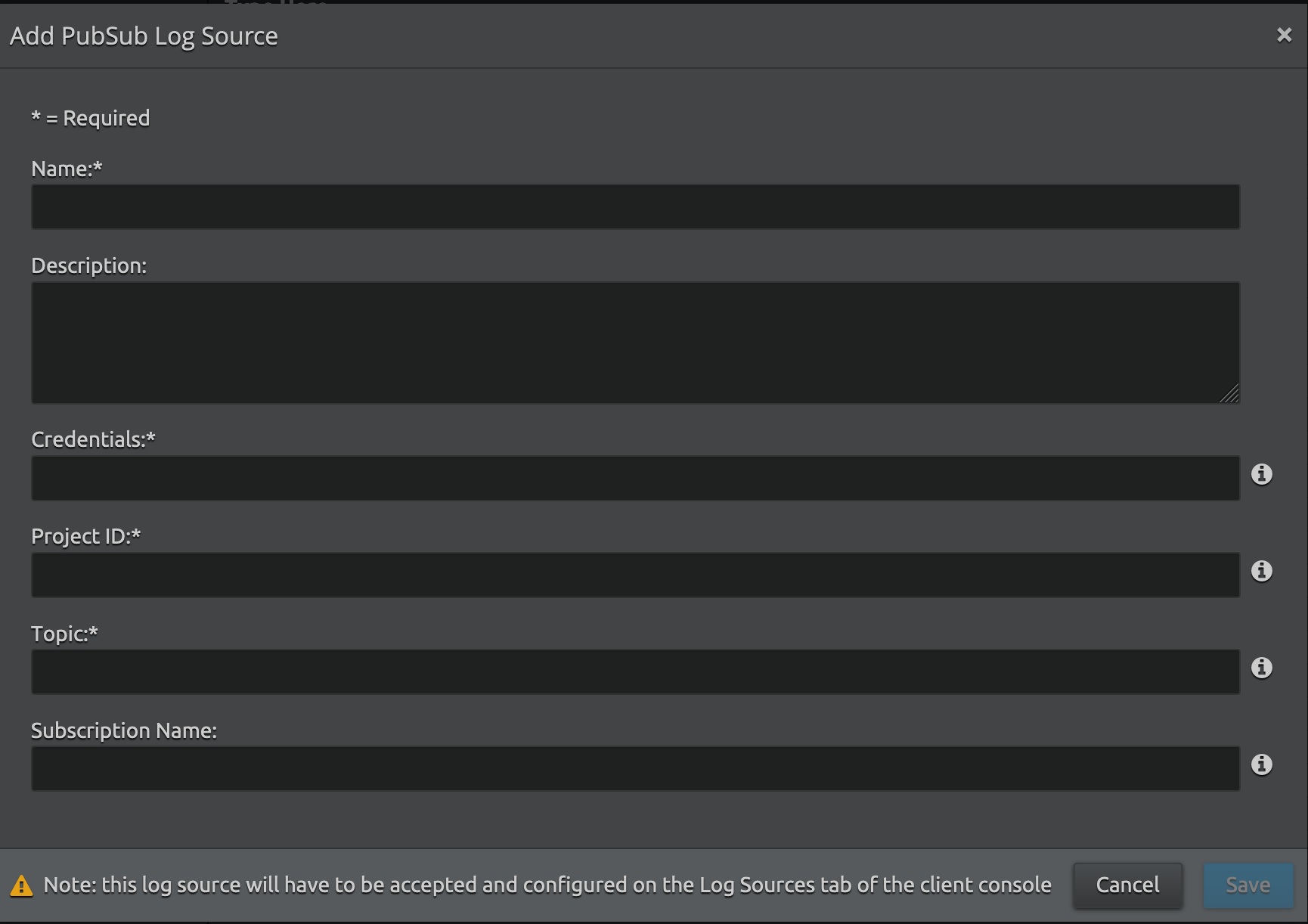

    The Add PubSub Log Source window appears.


  5. Enter the following details:

    Setting

    Description

    NameEnter the name for this log source.
    Description (Optional)Enter a description for this log source.
    CredentialsEnter the contents of the JSON credential file.
    Project IDEnter the Project ID of your project from GCP.
    Topic

    Enter the topic name from GCP. Enter only the portion that appears after "topics\" (for example, if your GCP console listed the topic name as "projects/datacollector-0000/topics/sample-topic", you would enter sample-topic).

    Subscription Name

    Enter the subscription name from GCP. Enter only the portion that appears after "subscriptions\" (for example, if your GCP console listed the subscription name as "projects/datacollector-0000/topics/sample-subscription", you would enter sample-subscription).

  6. Click Save.

  7. Log in to the Client Console in Cameyo.
  8. Click Deployment Manager from the toolbar.
  9. Click the System Monitors tab.
  10. Select the Action check box corresponding to the dpwac agent.
  11. Right-click the selection, click Actions and then click Service Restart.

A new log source is created with the provided information based on the virtualized log source that was already created. Collection should start automatically in few minutes.

The Open Collector hosts the log sources. It is recommended to create a new host entity and move the log source to the new host which is done in the log source properties screen and not from the log source grid.

For security, the values entered are encrypted using LRCrypt.

Default Config Values for PubSub Beat

Setting

Field Name

Default Value

1projectUser Provided
2HeartbeatInterval5m0s
3HeartbeatDisabledfalse
4CredentialsFileUser Provided

5

TopicUser Provided
6Subscription.nameUser Provided
7json.enabledtrue
8json.add_error_keytrue
9subscription.Createtrue
