Gen6 Platform Selection Mapping

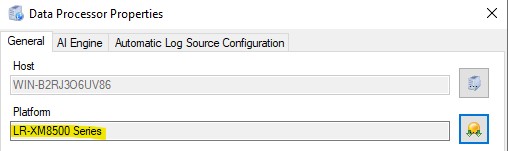

New Platform Selections will not be published in time for the release of Generation 6 Appliances that coincides with LogRhythm SIEM version 7.14. Therefore, some customers may receive Gen6 hardware and be required to use Gen5 Platform Selections in the LogRhythm Client Console. These settings apply to the Platform Manager and Data Processor Platform setting:

Until the 7.15 release, you should use the following Platform Selection options when installing LogRhythm Generation 6 appliances. Modify the settings in the “changes” section to optimize utilization and performance of your new appliance.

Gen6 Purchased	Gen5 Platform	Changes to Advanced Settings
LR-DP5600	LR-DP5500	None
LR-DP7600	LR-DP7500	Data Processor - MPE - LogProcessingThreads - Increase from 32 to 50
LR-PM5600	LR-PM5500	None
LR-PM7600	LR-PM7500	Platform Manager - ARM - MaxServiceMemory_ARM - Increase from 4096 to 12288 Platform Manager - ARM - MaxServiceMemory_JobManager - Increase from 8192 to 30768
LR-XM2600	LR-XM4500	Data Processor - Mediator - ParseQueueThreadCount - Increase 1 to 2 Data Processor - Mediator - ArchiveWriteThreadCount - Increase 2 to 4 Data Processor - MPE - LogProcessingThreads - Increase from 2 to 6
LR-XM4600	LR-XM6500	Data Processor - Mediator - ParseQueueThreadCount - Increase 2 to 4 Data Processor - Mediator - ArchiveWriteThreadCount - Increase 3 to 6 Data Processor - MPE - LogProcessingThreads - Increase from 4 to 10
LR-XM6600	LR-XM8500	Data Processor - Mediator - ParseQueueThreadCount - Increase 3 to 6 Data Processor - Mediator - ArchiveWriteThreadCount - Increase 5 to 8 Data Processor - MPE - LogProcessingThreads - Increase from 12 to 16
LR-XM8600	LR-XM8500	Data Processor - Mediator - ParseQueueThreadCount - Increase 3 to 8 Data Processor - Mediator - ArchiveWriteThreadCount - Increase 5 to 8 Data Processor - MPE - LogProcessingThreads - Increase from 12 to 32
