Import Docker Images for an Offline Installation of the Gmail Message Tracking Beat

To install docker images, which allows for Open Collector to operate offline, do the following:

1. Remove the previous versions.yml file if one exists.

   BASH

    rm -f versions.yml

2. Download and copy all the artifacts below to the virtual machine.

   S. No.	Component	Link	Checksum
   1	lrctl	lrctl_6_4_0.tar	lrctl_6_4_0.tar.sha256
   2	open-collector	opencollector_5_5_4.tar	opencollector_5_5_4.tar.sha256
   3	gmtbeat	gmtbeat_6_0_2.tar	gmtbeat_6_0_2.tar.sha256
   4	metrics	metrics_6_0_1.tar	metrics_6_0_1.tar.sha256
   5	versions.yml	versions.yml	versions.yml.sha256
   6	lrctl(script)	lrctl_script	lrctl_script.sh.sha256
   7	alpine	Alpine.tar	alpine.tar.sha256
   8	docker 20.10.8	docker_20_10_8.tar.gz	docker_20_10_8.tar.sha256



   Before extracting the .tar files into docker images, the Docker must be installed.

   If the Docker is already installed, skip to step 6.

3. Extract docker_20_10_8.tar.gz:

   BASH

   tar xzvf /path/to/docker_20_10_8.tar.gz

4. Move the binaries to /usr/bin/:

   BASH

   cp docker/* /usr/bin/

5. Start the Docker Daemon:

   BASH

   dockerd &

6. Before downloading the artifacts, please remove any running container(s) and the images related to that container.

   1. To stop all the running components, run the following command:

      BASH

      docker rm -f $(docker ps -aq)

   2. Next, remove all the docker images in the system:

      BASH

      docker rmi -f $(docker images -aq)

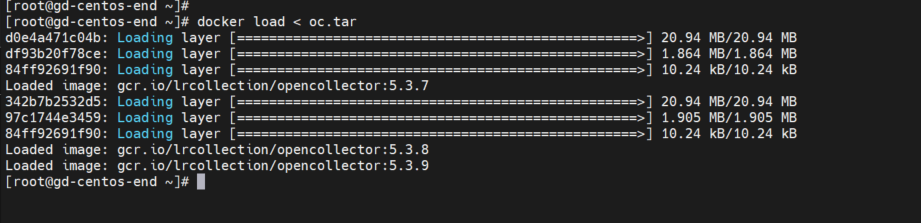

7. To extract a docker image from a .tar file, use the following command:

   BASH

   docker load < <image-name>.tar



8. Repeat step 7 to extract any additional .tar files.

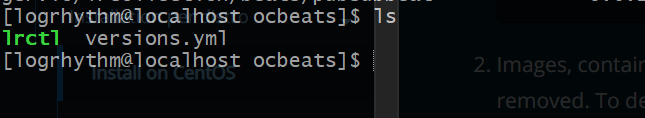

9. Place lrctl and versions.yml in the same folder.

10. Execute this command after step 9.

    BASH

    ./lrctl autoupdate disable

Use "-V versions.yml"  with every command while working with the beat.

BASH

./lrctl -V versions.yml gmtbeat start

Once all the .tar files have been extracted, start the Open Collector and Gmail Message Tracking Beat as normal by following the steps at .Initialize the Gmail Message Tracking Beat v2021.10.
